Overview
Most slabs we see on site are solid RCC. Full concrete. Full weight. No questions asked.
But if you really look at how a slab behaves structurally, a big portion of that concrete isn’t even doing much work.
That’s where filler slabs come in.
Instead of blindly pouring concrete everywhere, this system removes the non-working portion and replaces it with lightweight fillers—clay pots, tiles, blocks. Same thickness. Similar strength. Less material.
Done right, it reduces cost, improves thermal comfort, and even gives you a ceiling that doesn’t feel like every other flat slab.
Done wrong? You’ll start seeing seepage lines exactly where the fillers sit.
So this is one of those systems where understanding matters more than just copying.
What a Filler Slab Actually Is
A filler slab is still an RCC slab. That part doesn’t change.
The difference is where the concrete is placed.
In any slab:
- Top zone → compression (concrete works well here)
- Bottom zone → tension (steel handles most of it)
Now here’s the key insight.
Concrete in the lower portion isn’t contributing much to strength.
So instead of filling that zone with concrete, we replace it with fillers.
The structure still behaves like a slab—but now it’s lighter, more efficient, and better suited for heat control.
The Logic (Why This Works in Real Life)
This is where most people pause.
“How can removing concrete still be safe?”
Because slabs are not uniformly stressed.
The top compresses.
The bottom stretches.
Steel takes tension.
So when you remove concrete from low-stress zones and keep:
- reinforcement intact
- proper rib spacing
- continuous top layer
…the slab still performs structurally as expected.
Think of it less as “removing material” and more as “rearranging where material actually matters.”
Filler Materials — What Actually Gets Used
On site, this is where flexibility comes in—but also where mistakes start.
Common fillers include:
- Clay pots (very common across India)
- Mangalore tiles
- Hollow clay or concrete blocks
- Flat earthen tiles
You’ll occasionally see people experimenting with waste materials. That can work—but only if dimensions and behavior are understood properly.
A good filler material should be:
- lightweight
- stable during concreting
- non-reactive
- consistent in size
And honestly, availability matters more than theory. If sourcing is difficult, the system stops being practical.

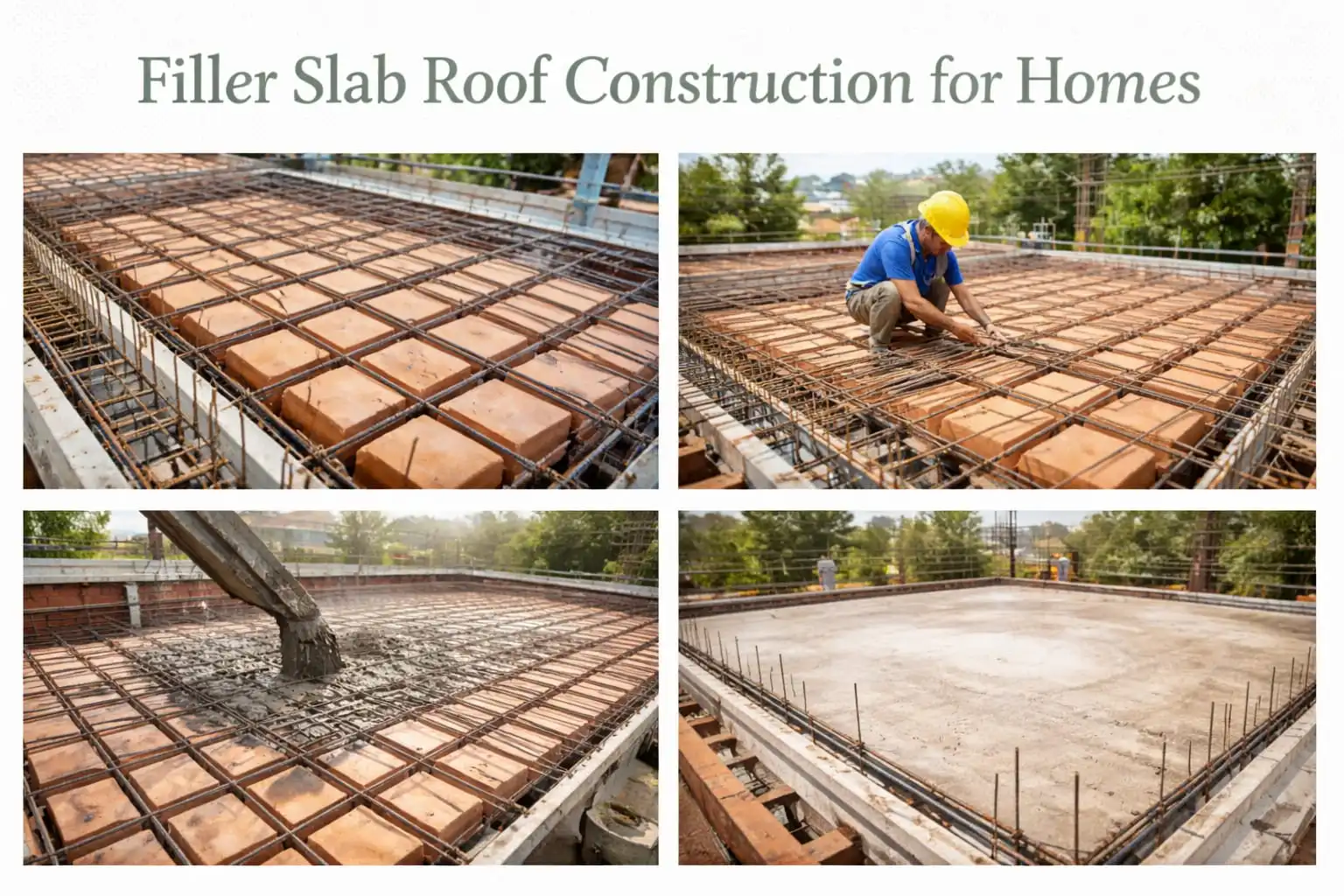

How Filler Slab Construction Actually Happens
On drawings, it looks like a small tweak.
On site, it’s a different level of attention.
Structural Planning
Everything starts here.
You need:
- proper slab design
- defined filler depth (below neutral axis)
- bar spacing that accommodates fillers
If this isn’t engineered properly, the rest is just adjustment on site—which is risky.
Formwork Setup
Similar to a normal slab—but more controlled.
Because fillers sit on it.
If shuttering isn’t stable, you’ll see uneven levels or shifted fillers during pouring.
Reinforcement Placement
Mostly standard—but spacing becomes critical.
Fillers sit between bars, so alignment and cover need to be precise.
No “adjust kar lenge” here.
Placing the Fillers
This is where execution quality shows.
Fillers are placed:
- between bars
- in a consistent grid
- with clear spacing
They should not touch steel.
I’ve seen sites where fillers were randomly adjusted just to “fit”—and those slabs always show problems later.
Concrete Pour
This step decides everything.
Concrete must:
- flow properly around fillers
- form solid ribs
- fully encase reinforcement
Too much vibration → fillers move
Too little → voids remain
And those voids are exactly where seepage begins.
Curing & Finish
Curing is critical, like any slab.
From below:
- fillers can be left exposed
- or lightly finished
When done cleanly, the ceiling itself becomes a design element.
Where Filler Slabs Actually Make Sense
Now this is where most people need clarity.
Because this system is not for every project.
Works Really Well When
If your roof is directly exposed to sun, filler slabs make a noticeable difference.
The air gaps inside fillers act as insulation. You’ll feel it in:
- reduced heat build-up
- better indoor comfort
Also, if:
- you have an experienced contractor
- the project is a house or villa (not rushed construction)
- you’re thinking long-term, not just initial cost
…then this system fits well.
Where You Should Think Twice
This is where most failures come from—not design, but wrong application.
Avoid or reconsider if:
- the labour team hasn’t executed filler slabs before
- the slab layout is highly complex
- the project is running on tight timelines
- waterproofing is not being planned seriously
Because this system needs discipline.
If execution is weak, a normal slab is actually safer.
Benefits That Actually Matter
Material & Cost Efficiency
Typically:
- ~20–30% reduction in concrete
- ~15–25% cost savings (project dependent)
But this only holds if execution is efficient.
Thermal Comfort
This is the biggest practical advantage.
The air pockets reduce heat transfer.
In Indian conditions, this translates to:
- cooler interiors
- less heat retention at night
Reduced Structural Load
Lighter slab means:
- less load on beams and columns
- potential savings in structure
- better seismic performance
Aesthetic Ceiling (Bonus)
Exposed filler patterns:
- add character
- reduce need for false ceiling
But honestly, this should never be the main reason to choose it.
Where Things Go Wrong on Site
Let’s be blunt—most issues are execution-related.
Common mistakes:
- fillers placed too deep
- uneven spacing
- poor compaction
- fillers shifting during pour
- weak waterproofing
And the biggest one:
Treating it like a normal slab.
It’s not.
Waterproofing — Don’t Compromise Here
From the top, a filler slab behaves like any roof.
So you still need:
- proper slope
- waterproofing layer
- protective finish
Because once water enters, it doesn’t behave predictably.
And then repairs become messy.
If This Was My Own House
I’d use a filler slab—but only where it makes sense.
- Roof slab → yes
- With experienced team → definitely
- With proper detailing → non-negotiable
And I would never compromise on:
- compaction
- alignment
- waterproofing
Because this is one of those systems where mistakes are not easy to fix later.
FAQs
What is a filler slab in simple terms?
A filler slab is an RCC slab where part of the lower concrete is replaced with lightweight materials like clay pots or tiles. This reduces material use while maintaining structural performance.
How is a filler slab different from a normal slab?
A normal slab is fully solid, while a filler slab replaces non-essential concrete with fillers. Both perform structurally, but filler slabs are lighter and more efficient.
What materials are used in filler slabs?
Common materials include clay pots, Mangalore tiles, and hollow blocks. They must be lightweight, stable, and easy to arrange between reinforcement bars.
How much cost saving is possible?
Typically, concrete reduces by 20–30% and total cost by around 15–25%, depending on execution and material availability.
Are filler slabs as strong as RCC slabs?
Yes, when designed correctly. The load is carried by reinforcement and concrete ribs, not the removed concrete.
Why are filler slabs better for hot climates?
They trap air within fillers, which reduces heat transfer and keeps interiors cooler.
What are the main risks in filler slabs?
Poor execution—misalignment, weak compaction, and bad waterproofing—can lead to leakage or structural issues.
Can filler slabs be used for floors?
Yes, but design must consider load and usage. Roof slabs benefit the most due to thermal advantages.
Do filler slabs need waterproofing?
Yes, proper waterproofing is essential, just like any roof slab.
Is a filler slab suitable for every project?
No. It works best where skilled execution, proper design, and climate conditions support its benefits.
